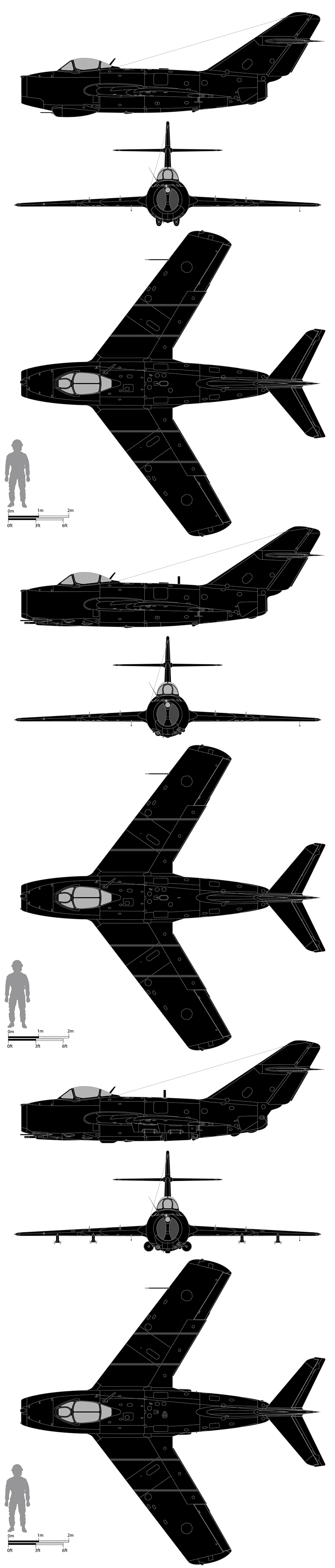

VERSIONS – MiG-15, SU, SB
Surplus Czechoslovak AIr Force
MiG-15 converted for ground
attack role, details as MiG-15
revised unless otherwise indicated
IFF antenna
Radio rigging relocated
Provision for new 400 lt
(88 Imp gal, 106 US gal)
fuel tanks on standard
(centre) hardpoint with
additional weapons
capability
Additional D3-40 pylons/
hardpoints added either side
of slipper tank attachment
Provision for
brake chute
Provision for 2 x Konstrukta Trenčίn SRP-1
JATO (Jet Assisted Take-Off) boosters
Additional PBP-1P sight,
weapons control panel for
unguided weapons and
JATO operation panel in
cockpit
MiG-15SB (Fagot-A)
SRO-1 Bariy-M IFF transponder antenna
Radio rigging relocated
Details as MiG-15 revised unless otherwise indicated
MiG-15 (Fagot-A)(later)
Development/weapons testbed, details as
MiG-15 (revised) unless otherwise indicated
V-1-25-Sh-3 experimental
weapons system replacing
original cannon armament
2 x 23 mm (.90 in) Shpital'nyy
Sh-3 cannons in gondolas
with 115 rounds per gun,
flexible mounts allow
movement of +11º/-7º
Movable gunsight
synchronised with
cannons via
electromechanical
elevation aiming
transmission
1 x MiG-15 (c/n 109035) modified
for testing moveable cannon
system designed by OKB-15 (1950)
MiG-15SU
