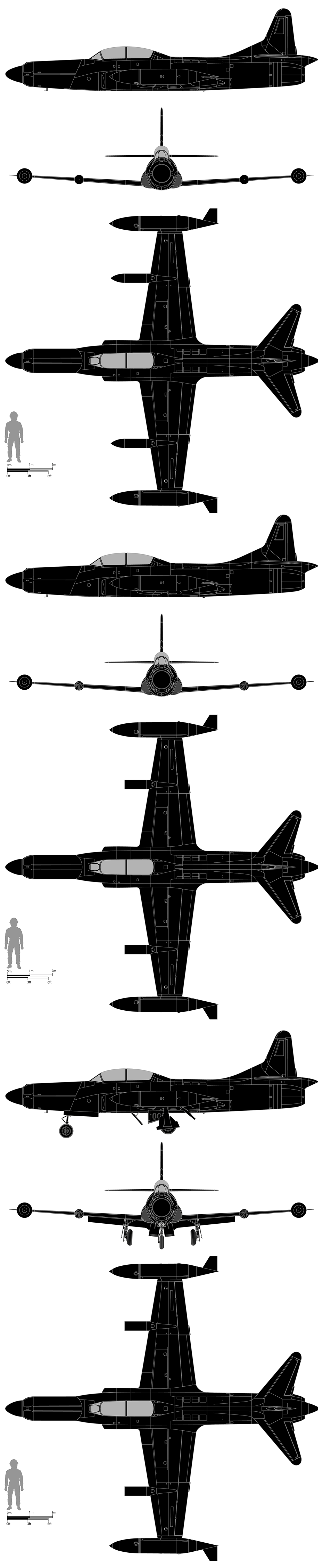

MAIN FEATURES
AN/ARC-27 antenna
in fin tip
Fuselage airbrakes (shown closed)
Rearward retracting,
single wheel nose
gear unit
Inward retracting single
wheel main gear unit
Flaps (shown lowered)
Under fuselage dive
brakes (shown lowered)
F-94C (armed and dirty)
24 x 70 mm (2.75 in) 'Mighty Mouse' FFAR (Folding
Fin Aircraft Rockets) in four bays (6 per bay) with
snap-action doors around the nose cone (shown
open in head-on view)
12 x 70 mm (2.75 in) 'Mighty Mouse'
FFAR (Folding Fin Aircraft Rockets) in
leading edge pod with frangible nose
cone (nose cone shown removed)
N-3C standby gunsight
AN/APG-40 radar
Hughes E-5 FCS
(Fire Control System)
AN/ARC-27 antenna
in fin tip
Provision for 2 x 454 kg (1,000 lb) Aerojet
12AS-1000D4 JATO (Jet Assisted Take Off)
bottles under rear fuselage
Avionics:
AN/APA-84 computer; NADAR radar coupler;
AN/ARC-27/-27A UHF radio; AN/ARN-6 radio
compass; AN/ARN-112 marker beacon
receiver; AN/ARN-18/-5B glide slope receiver;
AN/APX-6 IFF, ID-29 course indicator; Sperry
Zero Reader; RC-130D localizer system;
Westinghouse W-3A automatic pilot;
AN/AIC-2A interphone
F-94C (armed)
Rear hinged clamshell canopy with bow
1 x Pratt and Whitney J48-P-5 centrifugal
turbojet with afterburner
Pitot
D-shaped air intake with
boundary air bleed duct
Lower fuselage dive brakes
Rounded radome
Small cooling intake
for electronics bay
Removable rear
fuselage section
Wing spoiler
Hydraulically boosted ailerons
with ground adjustable tab
Split half
span flaps
Swept tailplanes with
hydraulically boosted
elevators and trim tab
Brake chute housing with 4.88 m (16 ft)
diameter ribbon type brake chute
Snap-action doors covering FFAR
(Folding Fin Aircraft Rockets) bays
Tail fin with large fillet
Lockheed ejector seats
Fuselage break line
Armoured front glass element
Under fuselage airbrakes
Trapezoidal planform laminar
flow wings with 9º 18' leading
edge sweep and 8º dihedral
Leading edge rocket pod
Centre mounted wing tip 871 lt
(192 Imp gal, 230 US gal)
Fletcher drop tanks
Formation light on tip tank
Dorsal spine
F-94C (clean)
F-94: 2
